Интеграция с Vault в OpenShift#
Назначение#
Vault - это инструмент, который обеспечивает безопасный и надежный способ хранения, распространения и управления секретами. IAM Proxy может использовать Vault на этапе развертывания для получения паролей от учетных записей, сертификатов, закрытых ключей.
Настройка интеграции с Vault в OpenShift#
Для интеграции Vault с IAM Proxy потребуется выполнить несколько шагов:
Перейти в Vault и создать два хранилища с типом KV
В них будут храниться секретные данные - пароли, ssl сертификаты(закрытый и открытый ключи) и хранилища ключей (
keystore).В одно из хранилищ помещаем пароли в виде <имя_переменной>:<пароль>. Имена переменных должны соответствовать именам переменных приведенных в Таблице 1, так как они используются при формировании файла main_vault.yml
Во второе хранилище помещаем сертификаты и хранилища ключей в виде <имя_файла_сертификата>:<содержимое_сертификата>. В случае с хранилищами ключей, файл хранилища должен быть закодирован по методу base64 и передан в значение секрета как строка, а имя файла должно иметь окончание ".base64" ( Например keycloak-keystore.p12.base64). Имена файлов должны соответствовать Таблице 2.
Таблица 1
Имя переменной |
Описание |
|---|---|
deployer_pass |
Пароль пользователя deployer |
keycloak_admin_password |
Пароль администратора realm master компонента KeyCloak.SE |
keycloak_db_password |
Пароль пользователя БД Postgres компонента KeyCloak.SE |
keycloak_funcadmin_password |
Пароль функционального администратора realm PlatformAuth компонента KeyCloak.SE |
keycloak_keystore_password |
Пароль от хранилища ключей для компонента KeyCloak.SE |
keycloak_rest_api_user_password |
Пароль пользователя для доступа к api компонента KeyCloak.SE |
nexus_url_password |
Пароль пользователя nexus для скачивания дистрибутива IAM Proxy |
proxy_session_secret |
Секрет используемый для шифрования сессии IAM Proxy (длина должна быть > 100 символом, и НЕ должно содержать символов " $) |
rds_client_keyStorePassword |
Пароль хранилища ключей приложения rds-client |
spas_wsSyncSpas_password |
Пароль пользователя для синхронизации со SPAS |
proxy_oidc_client_secret |
client_secret для подключения IAM Proxy к KeyCloak.SE по OIDC |
Таблица 2
Имя файла |
Описание |
|---|---|
proxy-server.crt.pem |
Открытый ключ для организации https на прокси |
proxy-server.key.pem |
Закрытый ключ для организации https на прокси |
syslogng-server.crt.pem |
Открытый ключ для организации tls+syslog keycloak→syslog-ng |
syslogng-server.key.pem |
Закрытый ключ для организации tls+syslog keycloak→syslog-ng |
trusted_ca_<имя_сертификата>.crt.pem |
Доверенные центры сертификации в формате PEM, которые выдали сертификаты нам и/или смежным серверам (это как минимум корневой и промежуточный ЦС) |
proxy-server.p12.base64 |
База сертификатов/ключей IAM Proxy в которой содержится сертификат для организации https на keycloak |
keycloak-server.p12.base64 |
База сертификатов/ключей keycloak в которой содержится сертификат для организации https на keycloak |
rds-server-keystore.p12.base64 |
База сертификатов/ключей keycloak в которой содержится сертификат для организации https на rds-server |

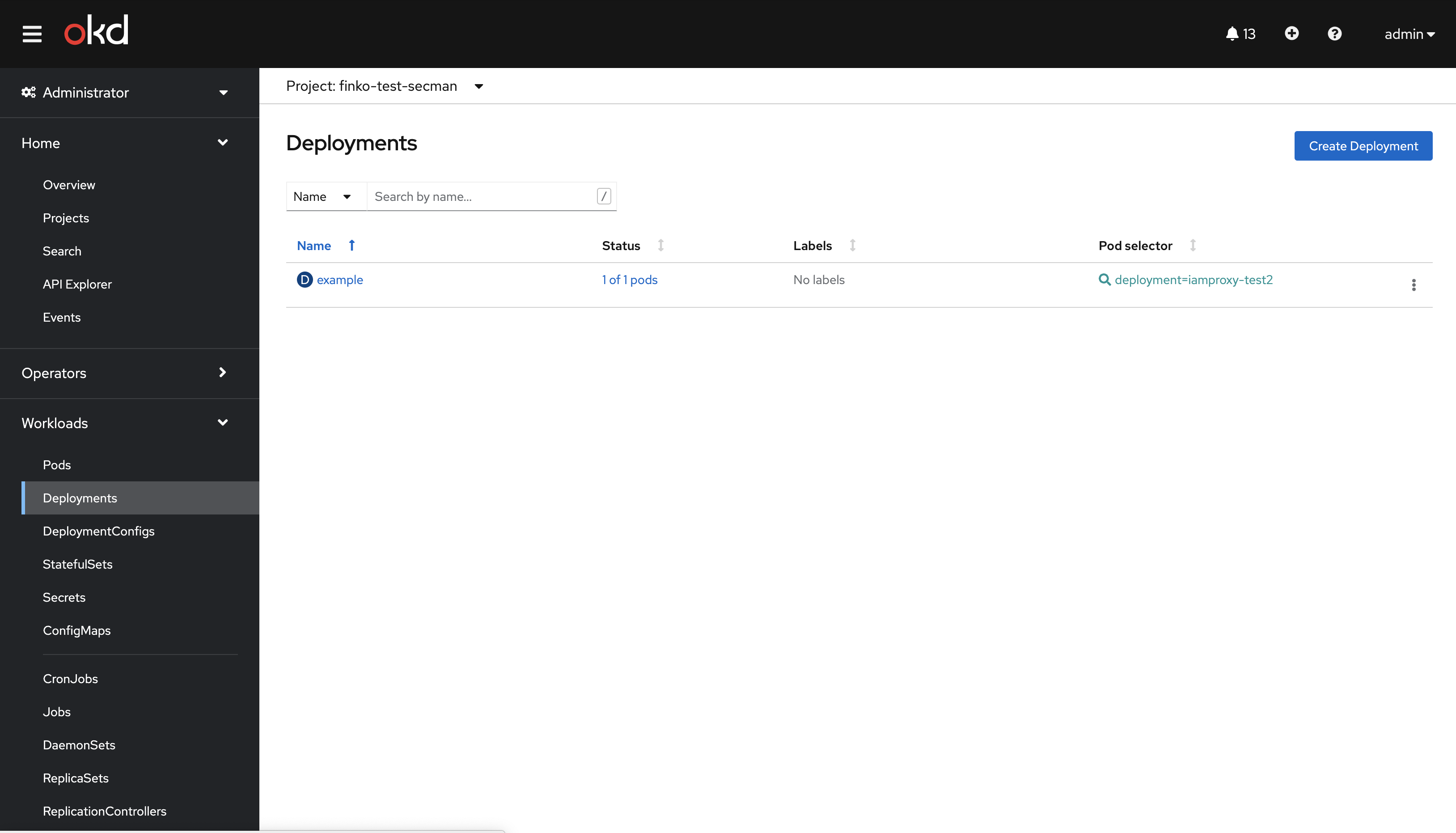

Перейти в OpenShift, открыть вкладку "WorkLoads" и нажать "Deployments"
В списке выбрать свой контроллер развертывания.
Перейти во вкладку YAML и в kind: Deployment задать параметры, которые создают скрипт генерации секрет-файлов в конкретном каталоге секрета, а потом его запускают
Вариант 1. Подключение всех переменных в файлы из конкретного секрета
Ниже пример подключения секретов для прокси:
spec:
replicas: 1
selector:
matchLabels:
deployment: iamproxy-test2
template:
metadata:
creationTimestamp: null
labels:
deployment: iamproxy-test2
secman-injector: enabled
annotations:
openshift.io/generated-by: OpenShiftNewApp
sidecar.istio.io/inject: 'false'
vault.hashicorp.com/log-level: debug
vault.hashicorp.com/role: role-ga-secman-iam-proxy
vault.hashicorp.com/agent-inject: 'true'
vault.hashicorp.com/agent-init-first: 'true'
vault.hashicorp.com/agent-pre-populate-only: 'true'
traffic.sidecar.istio.io/excludeOutboundPorts: '443'
vault.hashicorp.com/secret-volume-path: /secrets
vault.hashicorp.com/agent-inject-secret-builder: 'true'
vault.hashicorp.com/agent-inject-command-builder: sh -c "cd /secrets ; source ./builder"
vault.hashicorp.com/agent-inject-template-builder: |
{{- with secret "DEV/AUTH/SC/KV/OSE.tribe-sc-auth-dev-01" -}}
umask 277
pwd; ls -la
{{ range $k, $v := .Data }}
{{ $filename := ($k | replaceAll ".base64" "") }}
echo '*** Create file {{ $filename }}'
{{- if eq $k $filename }}
cat > '{{ $filename }}' <<EOF
{{- else }}
base64 --decode > '{{ $filename }}' <<EOF
{{- end }}
{{ $v }}
EOF
{{- end }}
{{- end }}
ls -la
vault.hashicorp.com/agent-inject-secret-builder-certs: 'true'
vault.hashicorp.com/secret-volume-path-builder-certs: /certs
vault.hashicorp.com/agent-inject-command-builder-certs: sh -c "cd /certs ; source ./builder-certs"
vault.hashicorp.com/agent-inject-template-builder-certs: |
{{- with secret "DEV/AUTH/SC/KV/OSE.tribe-sc-auth-dev-01.certs" -}}
umask 277
pwd; ls -la
{{ range $k, $v := .Data }}
{{ $filename := ($k | replaceAll ".base64" "") }}
echo '*** Create file {{ $filename }}'
{{- if eq $k $filename }}
cat > '{{ $filename }}' <<EOF
{{- else }}
base64 --decode > '{{ $filename }}' <<EOF
{{- end }}
{{ $v }}
EOF
{{- end }}
{{- end }}
ls -la

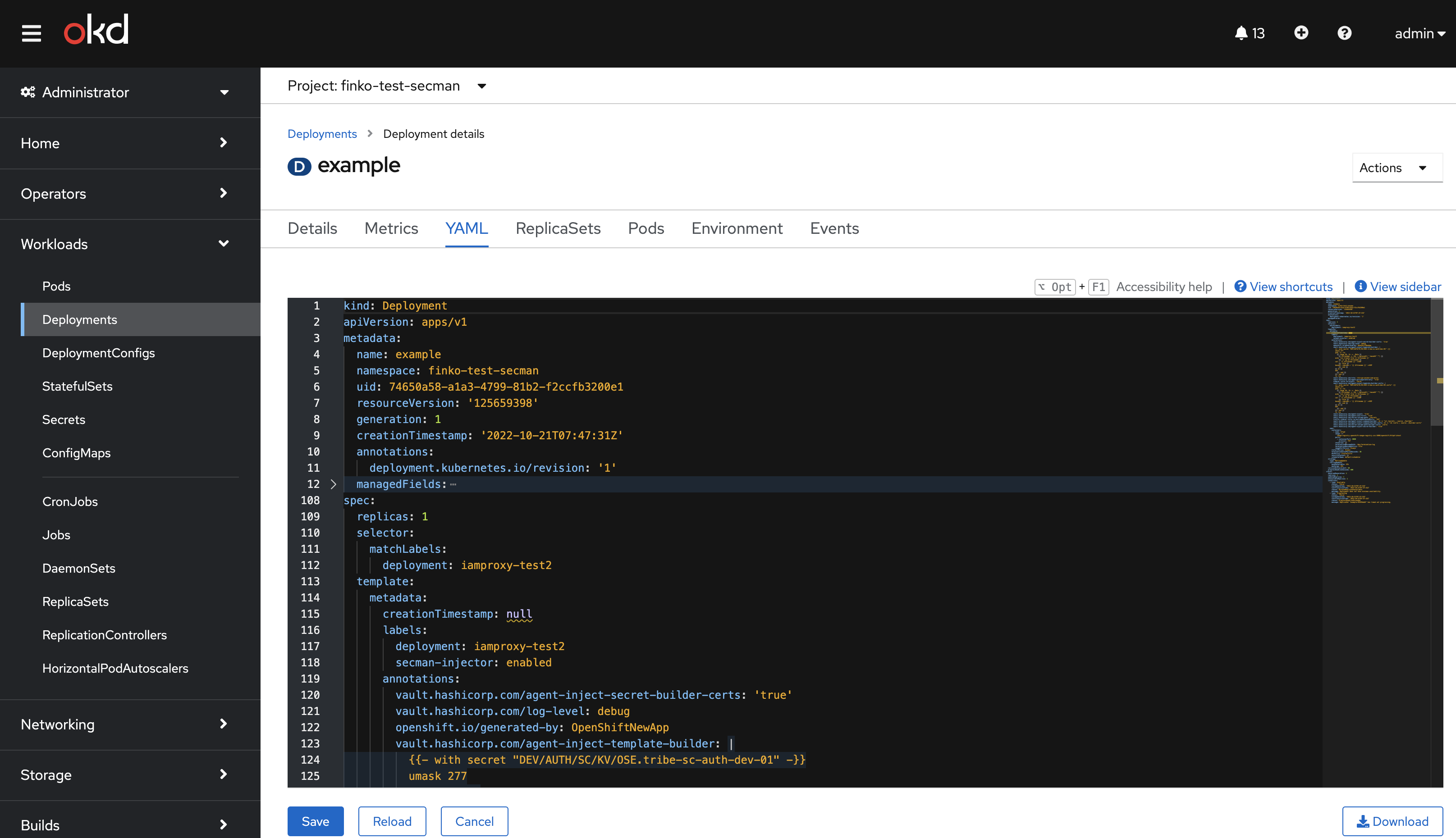

Нажимаем кнопку сохранить
Смотрим логи Vault Agent
Пример логов Vault Agent
==> Vault agent started! Log data will stream in below:
==> Vault agent configuration:
Cgo: enabled
Log Level: debug
Version: Vault v1.7.0-0.11.1
Version Sha: 7fdc0748ddc57511a5223c2dd9a6841ff0770246+CHANGES
2022-09-08T22:40:00.993Z [INFO] sink.file: creating file sink
2022-09-08T22:40:00.994Z [INFO] sink.file: file sink configured: path=/home/vault/.vault-token mode=-rw-r-----
2022-09-08T22:40:00.994Z [INFO] sink.server: starting sink server
2022-09-08T22:40:00.994Z [INFO] auth.handler: starting auth handler
2022-09-08T22:40:00.994Z [INFO] auth.handler: authenticating
2022-09-08T22:40:00.994Z [INFO] template.server: starting template server
2022-09-08T22:40:00.994Z [INFO] (runner) creating new runner (dry: false, once: false)
2022-09-08T22:40:00.995Z [DEBUG] (runner) final config: {"Consul":{"Address":"","Namespace":"","Auth":{"Enabled":false,"Username":"","Password":""},"Retry":{"Attempts":12,"Backoff":250000000,"MaxBackoff":60000000000,"Enabled":true},"SSL":{"CaCert":"","CaPath":"","Cert":"","Enabled":false,"Key":"","ServerName":"","Verify":true},"Token":"","Transport":{"DialKeepAlive":30000000000,"DialTimeout":30000000000,"DisableKeepAlives":false,"IdleConnTimeout":90000000000,"MaxIdleConns":100,"MaxIdleConnsPerHost":33,"TLSHandshakeTimeout":10000000000}},"Dedup":{"Enabled":false,"MaxStale":2000000000,"Prefix":"consul-template/dedup/","TTL":15000000000,"BlockQueryWaitTime":60000000000},"DefaultDelims":{"Left":null,"Right":null},"Exec":{"Command":"","Enabled":false,"Env":{"Denylist":[],"Custom":[],"Pristine":false,"Allowlist":[]},"KillSignal":2,"KillTimeout":30000000000,"ReloadSignal":null,"Splay":0,"Timeout":0},"KillSignal":2,"LogLevel":"DEBUG","MaxStale":2000000000,"PidFile":"","ReloadSignal":1,"syslog":{"Enabled":false,"Facility":"LOCAL0","Name":""},"Templates":[{"Backup":false,"Command":"sh -c \"cd /secrets ; source ./builder\"","CommandTimeout":30000000000,"Contents":"{{- with secret \"DEV/AUTH/SC/KV/OSE.tribe-sc-auth-dev-01\" -}}\numask 277\npwd; ls -la\n {{ range $k, $v := .Data }}\n {{ $filename := ($k | replaceAll \".base64\" \"\") }}\necho '*** Create file {{ $filename }}'\n {{- if eq $k $filename }}\ncat \u003e '{{ $filename }}' \u003c\u003cEOF\n {{- else }}\nbase64 --decode \u003e '{{ $filename }}' \u003c\u003cEOF\n {{- end }}\n{{ $v }}\nEOF\n {{- end }}\n{{- end }}\nls -la\n","CreateDestDirs":true,"Destination":"/secrets/builder","ErrMissingKey":false,"Exec":{"Command":"sh -c \"cd /secrets ; source ./builder\"","Enabled":true,"Env":{"Denylist":[],"Custom":[],"Pristine":false,"Allowlist":[]},"KillSignal":2,"KillTimeout":30000000000,"ReloadSignal":null,"Splay":0,"Timeout":30000000000},"Perms":256,"Source":"","Wait":{"Enabled":false,"Min":0,"Max":0},"LeftDelim":"{{","RightDelim":"}}","FunctionDenylist":[],"SandboxPath":""},{"Backup":false,"Command":"sh -c \"cd /certs ; source ./builder-certs\"","CommandTimeout":30000000000,"Contents":"{{- with secret \"DEV/AUTH/SC/KV/OSE.tribe-sc-auth-dev-01.certs\" -}}\numask 277\npwd; ls -la\n {{ range $k, $v := .Data }}\n {{ $filename := ($k | replaceAll \".base64\" \"\") }}\necho '*** Create file {{ $filename }}'\n {{- if eq $k $filename }}\ncat \u003e '{{ $filename }}' \u003c\u003cEOF\n {{- else }}\nbase64 --decode \u003e '{{ $filename }}' \u003c\u003cEOF\n {{- end }}\n{{ $v }}\nEOF\n {{- end }}\n{{- end }}\nls -la\n","CreateDestDirs":true,"Destination":"/certs/builder-certs","ErrMissingKey":false,"Exec":{"Command":"sh -c \"cd /certs ; source ./builder-certs\"","Enabled":true,"Env":{"Denylist":[],"Custom":[],"Pristine":false,"Allowlist":[]},"KillSignal":2,"KillTimeout":30000000000,"ReloadSignal":null,"Splay":0,"Timeout":30000000000},"Perms":256,"Source":"","Wait":{"Enabled":false,"Min":0,"Max":0},"LeftDelim":"{{","RightDelim":"}}","FunctionDenylist":[],"SandboxPath":""}],"Vault":{"Address":"http://10.x.x.239:8200","Enabled":true,"Namespace":"","RenewToken":false,"Retry":{"Attempts":12,"Backoff":250000000,"MaxBackoff":60000000000,"Enabled":true},"SSL":{"CaCert":"","CaPath":"","Cert":"","Enabled":false,"Key":"","ServerName":"","Verify":false},"Transport":{"DialKeepAlive":30000000000,"DialTimeout":30000000000,"DisableKeepAlives":false,"IdleConnTimeout":90000000000,"MaxIdleConns":100,"MaxIdleConnsPerHost":33,"TLSHandshakeTimeout":10000000000},"UnwrapToken":false,"DefaultLeaseDuration":300000000000},"Wait":{"Enabled":false,"Min":0,"Max":0},"Once":false,"BlockQueryWaitTime":60000000000}
2022-09-08T22:40:00.995Z [INFO] (runner) creating watcher
2022-09-08T22:40:01.019Z [INFO] auth.handler: authentication successful, sending token to sinks
2022-09-08T22:40:01.019Z [INFO] auth.handler: starting renewal process
2022-09-08T22:40:01.019Z [INFO] template.server: template server received new token
2022-09-08T22:40:01.020Z [INFO] (runner) stopping
2022-09-08T22:40:01.020Z [DEBUG] (runner) stopping watcher
2022-09-08T22:40:01.020Z [DEBUG] (watcher) stopping all views
2022-09-08T22:40:01.020Z [INFO] (runner) creating new runner (dry: false, once: false)
2022-09-08T22:40:01.020Z [DEBUG] (runner) final config: {"Consul":{"Address":"","Namespace":"","Auth":{"Enabled":false,"Username":"","Password":""},"Retry":{"Attempts":12,"Backoff":250000000,"MaxBackoff":60000000000,"Enabled":true},"SSL":{"CaCert":"","CaPath":"","Cert":"","Enabled":false,"Key":"","ServerName":"","Verify":true},"Token":"","Transport":{"DialKeepAlive":30000000000,"DialTimeout":30000000000,"DisableKeepAlives":false,"IdleConnTimeout":90000000000,"MaxIdleConns":100,"MaxIdleConnsPerHost":33,"TLSHandshakeTimeout":10000000000}},"Dedup":{"Enabled":false,"MaxStale":2000000000,"Prefix":"consul-template/dedup/","TTL":15000000000,"BlockQueryWaitTime":60000000000},"DefaultDelims":{"Left":null,"Right":null},"Exec":{"Command":"","Enabled":false,"Env":{"Denylist":[],"Custom":[],"Pristine":false,"Allowlist":[]},"KillSignal":2,"KillTimeout":30000000000,"ReloadSignal":null,"Splay":0,"Timeout":0},"KillSignal":2,"LogLevel":"DEBUG","MaxStale":2000000000,"PidFile":"","ReloadSignal":1,"syslog":{"Enabled":false,"Facility":"LOCAL0","Name":""},"Templates":[{"Backup":false,"Command":"sh -c \"cd /secrets ; source ./builder\"","CommandTimeout":30000000000,"Contents":"{{- with secret \"DEV/AUTH/SC/KV/OSE.tribe-sc-auth-dev-01\" -}}\numask 277\npwd; ls -la\n {{ range $k, $v := .Data }}\n {{ $filename := ($k | replaceAll \".base64\" \"\") }}\necho '*** Create file {{ $filename }}'\n {{- if eq $k $filename }}\ncat \u003e '{{ $filename }}' \u003c\u003cEOF\n {{- else }}\nbase64 --decode \u003e '{{ $filename }}' \u003c\u003cEOF\n {{- end }}\n{{ $v }}\nEOF\n {{- end }}\n{{- end }}\nls -la\n","CreateDestDirs":true,"Destination":"/secrets/builder","ErrMissingKey":false,"Exec":{"Command":"sh -c \"cd /secrets ; source ./builder\"","Enabled":true,"Env":{"Denylist":[],"Custom":[],"Pristine":false,"Allowlist":[]},"KillSignal":2,"KillTimeout":30000000000,"ReloadSignal":null,"Splay":0,"Timeout":30000000000},"Perms":256,"Source":"","Wait":{"Enabled":false,"Min":0,"Max":0},"LeftDelim":"{{","RightDelim":"}}","FunctionDenylist":[],"SandboxPath":""},{"Backup":false,"Command":"sh -c \"cd /certs ; source ./builder-certs\"","CommandTimeout":30000000000,"Contents":"{{- with secret \"DEV/AUTH/SC/KV/OSE.tribe-sc-auth-dev-01.certs\" -}}\numask 277\npwd; ls -la\n {{ range $k, $v := .Data }}\n {{ $filename := ($k | replaceAll \".base64\" \"\") }}\necho '*** Create file {{ $filename }}'\n {{- if eq $k $filename }}\ncat \u003e '{{ $filename }}' \u003c\u003cEOF\n {{- else }}\nbase64 --decode \u003e '{{ $filename }}' \u003c\u003cEOF\n {{- end }}\n{{ $v }}\nEOF\n {{- end }}\n{{- end }}\nls -la\n","CreateDestDirs":true,"Destination":"/certs/builder-certs","ErrMissingKey":false,"Exec":{"Command":"sh -c \"cd /certs ; source ./builder-certs\"","Enabled":true,"Env":{"Denylist":[],"Custom":[],"Pristine":false,"Allowlist":[]},"KillSignal":2,"KillTimeout":30000000000,"ReloadSignal":null,"Splay":0,"Timeout":30000000000},"Perms":256,"Source":"","Wait":{"Enabled":false,"Min":0,"Max":0},"LeftDelim":"{{","RightDelim":"}}","FunctionDenylist":[],"SandboxPath":""}],"Vault":{"Address":"http://10.x.x.239:8200","Enabled":true,"Namespace":"","RenewToken":false,"Retry":{"Attempts":12,"Backoff":250000000,"MaxBackoff":60000000000,"Enabled":true},"SSL":{"CaCert":"","CaPath":"","Cert":"","Enabled":false,"Key":"","ServerName":"","Verify":false},"Transport":{"DialKeepAlive":30000000000,"DialTimeout":30000000000,"DisableKeepAlives":false,"IdleConnTimeout":90000000000,"MaxIdleConns":100,"MaxIdleConnsPerHost":33,"TLSHandshakeTimeout":10000000000},"UnwrapToken":false,"DefaultLeaseDuration":300000000000},"Wait":{"Enabled":false,"Min":0,"Max":0},"Once":false,"BlockQueryWaitTime":60000000000}
2022-09-08T22:40:01.020Z [INFO] sink.file: token written: path=/home/vault/.vault-token
2022-09-08T22:40:01.020Z [INFO] sink.server: sink server stopped
2022-09-08T22:40:01.020Z [INFO] sinks finished, exiting
2022-09-08T22:40:01.020Z [INFO] (runner) creating watcher
2022-09-08T22:40:01.020Z [INFO] (runner) starting
2022-09-08T22:40:01.020Z [DEBUG] (runner) running initial templates
2022-09-08T22:40:01.020Z [DEBUG] (runner) initiating run
2022-09-08T22:40:01.020Z [DEBUG] (runner) checking template 105292efd41a7c9975e2a29948f47d65
2022-09-08T22:40:01.021Z [DEBUG] (runner) missing data for 1 dependencies
2022-09-08T22:40:01.021Z [DEBUG] (runner) missing dependency: vault.read(DEV/AUTH/SC/KV/OSE.tribe-sc-auth-dev-01)
2022-09-08T22:40:01.021Z [DEBUG] (runner) add used dependency vault.read(DEV/AUTH/SC/KV/OSE.tribe-sc-auth-dev-01) to missing since isLeader but do not have a watcher
2022-09-08T22:40:01.021Z [DEBUG] (runner) was not watching 1 dependencies
2022-09-08T22:40:01.021Z [DEBUG] (watcher) adding vault.read(DEV/AUTH/SC/KV/OSE.tribe-sc-auth-dev-01)
2022-09-08T22:40:01.021Z [DEBUG] (runner) checking template 59a664fe261e3af4e0e21f2899ca1399
2022-09-08T22:40:01.021Z [DEBUG] (runner) missing data for 1 dependencies
2022-09-08T22:40:01.021Z [DEBUG] (runner) missing dependency: vault.read(DEV/AUTH/SC/KV/OSE.tribe-sc-auth-dev-01.certs)
2022-09-08T22:40:01.021Z [DEBUG] (runner) add used dependency vault.read(DEV/AUTH/SC/KV/OSE.tribe-sc-auth-dev-01.certs) to missing since isLeader but do not have a watcher
2022-09-08T22:40:01.021Z [DEBUG] (runner) was not watching 1 dependencies
2022-09-08T22:40:01.021Z [DEBUG] (watcher) adding vault.read(DEV/AUTH/SC/KV/OSE.tribe-sc-auth-dev-01.certs)
2022-09-08T22:40:01.021Z [DEBUG] (runner) diffing and updating dependencies
2022-09-08T22:40:01.021Z [DEBUG] (runner) watching 2 dependencies
2022-09-08T22:40:01.023Z [INFO] auth.handler: renewed auth token
2022-09-08T22:40:01.123Z [DEBUG] (runner) receiving dependency vault.read(DEV/AUTH/SC/KV/OSE.tribe-sc-auth-dev-01)
2022-09-08T22:40:01.123Z [DEBUG] (runner) initiating run
2022-09-08T22:40:01.123Z [DEBUG] (runner) checking template 105292efd41a7c9975e2a29948f47d65
2022-09-08T22:40:01.124Z [DEBUG] (runner) rendering "(dynamic)" => "/secrets/builder"
2022-09-08T22:40:01.124Z [INFO] (runner) rendered "(dynamic)" => "/secrets/builder"
2022-09-08T22:40:01.124Z [DEBUG] (runner) appending command "sh -c \"cd /secrets ; source ./builder\"" from "(dynamic)" => "/secrets/builder"
2022-09-08T22:40:01.124Z [DEBUG] (runner) checking template 59a664fe261e3af4e0e21f2899ca1399
2022-09-08T22:40:01.124Z [DEBUG] (runner) missing data for 1 dependencies
2022-09-08T22:40:01.124Z [DEBUG] (runner) missing dependency: vault.read(DEV/AUTH/SC/KV/OSE.tribe-sc-auth-dev-01.certs)
2022-09-08T22:40:01.124Z [DEBUG] (runner) missing data for 1 dependencies
2022-09-08T22:40:01.124Z [DEBUG] (runner) diffing and updating dependencies
2022-09-08T22:40:01.124Z [DEBUG] (runner) vault.read(DEV/AUTH/SC/KV/OSE.tribe-sc-auth-dev-01) is still needed
2022-09-08T22:40:01.124Z [DEBUG] (runner) vault.read(DEV/AUTH/SC/KV/OSE.tribe-sc-auth-dev-01.certs) is still needed
2022-09-08T22:40:01.124Z [INFO] (runner) executing command "sh -c \"cd /secrets ; source ./builder\"" from "(dynamic)" => "/secrets/builder"
2022-09-08T22:40:01.124Z [INFO] (child) spawning: sh -c cd /secrets ; source ./builder
/secrets
total 4
drwxrwsrwt. 2 root 1001640000 60 Sep 8 22:40 .
drwxr-xr-x. 1 root root 34 Sep 8 22:40 ..
-r--------. 1 1001640000 1001640000 496 Sep 8 22:40 builder
*** Create file PROXY_OIDC_CLIENT_ID
*** Create file PROXY_OIDC_CLIENT_SECRET
*** Create file PROXY_SESSION_SECRET
*** Create file RDS_CLIENT_KEYSTOREPASSWORD
total 20
drwxrwsrwt. 2 root 1001640000 140 Sep 8 22:40 .
drwxr-xr-x. 1 root root 45 Sep 8 22:40 ..
-r--------. 1 1001640000 1001640000 19 Sep 8 22:40 PROXY_OIDC_CLIENT_ID
-r--------. 1 1001640000 1001640000 33 Sep 8 22:40 PROXY_OIDC_CLIENT_SECRET
-r--------. 1 1001640000 1001640000 29 Sep 8 22:40 PROXY_SESSION_SECRET
-r--------. 1 1001640000 1001640000 9 Sep 8 22:40 RDS_CLIENT_KEYSTOREPASSWORD
-r--------. 1 1001640000 1001640000 496 Sep 8 22:40 builder
2022-09-08T22:40:01.136Z [DEBUG] (runner) watching 2 dependencies
2022-09-08T22:40:01.136Z [DEBUG] (runner) receiving dependency vault.read(DEV/AUTH/SC/KV/OSE.tribe-sc-auth-dev-01.certs)
2022-09-08T22:40:01.136Z [DEBUG] (runner) initiating run
2022-09-08T22:40:01.136Z [DEBUG] (runner) checking template 105292efd41a7c9975e2a29948f47d65
2022-09-08T22:40:01.137Z [DEBUG] (runner) rendering "(dynamic)" => "/secrets/builder"
2022-09-08T22:40:01.137Z [DEBUG] (runner) checking template 59a664fe261e3af4e0e21f2899ca1399
2022-09-08T22:40:01.137Z [DEBUG] (runner) rendering "(dynamic)" => "/certs/builder-certs"
2022-09-08T22:40:01.137Z [INFO] (runner) rendered "(dynamic)" => "/certs/builder-certs"
2022-09-08T22:40:01.137Z [DEBUG] (runner) appending command "sh -c \"cd /certs ; source ./builder-certs\"" from "(dynamic)" => "/certs/builder-certs"
2022-09-08T22:40:01.137Z [DEBUG] (runner) diffing and updating dependencies
2022-09-08T22:40:01.137Z [DEBUG] (runner) vault.read(DEV/AUTH/SC/KV/OSE.tribe-sc-auth-dev-01) is still needed
2022-09-08T22:40:01.137Z [DEBUG] (runner) vault.read(DEV/AUTH/SC/KV/OSE.tribe-sc-auth-dev-01.certs) is still needed
2022-09-08T22:40:01.137Z [INFO] (runner) executing command "sh -c \"cd /certs ; source ./builder-certs\"" from "(dynamic)" => "/certs/builder-certs"
2022-09-08T22:40:01.137Z [INFO] (child) spawning: sh -c cd /certs ; source ./builder-certs
/certs
total 16
drwxrwsrwt. 2 root 1001640000 60 Sep 8 22:40 .
drwxr-xr-x. 1 root root 45 Sep 8 22:40 ..
-r--------. 1 1001640000 1001640000 13956 Sep 8 22:40 builder-certs
*** Create file rds-keystore.p12
*** Create file server.crt.pem
*** Create file server.key.pem
*** Create file test_xxx
*** Create file trusted_ca_intermediate.crt.pem
*** Create file trusted_ca_root.crt.pem
total 44
drwxrwsrwt. 2 root 1001640000 180 Sep 8 22:40 .
drwxr-xr-x. 1 root root 45 Sep 8 22:40 ..
-r--------. 1 1001640000 1001640000 13956 Sep 8 22:40 builder-certs
-r--------. 1 1001640000 1001640000 4438 Sep 8 22:40 rds-keystore.p12
-r--------. 1 1001640000 1001640000 2833 Sep 8 22:40 server.crt.pem
-r--------. 1 1001640000 1001640000 3273 Sep 8 22:40 server.key.pem
-r--------. 1 1001640000 1001640000 11 Sep 8 22:40 test_xxx
-r--------. 1 1001640000 1001640000 676 Sep 8 22:40 trusted_ca_intermediate.crt.pem
-r--------. 1 1001640000 1001640000 619 Sep 8 22:40 trusted_ca_root.crt.pem
2022-09-08T22:40:01.151Z [DEBUG] (runner) watching 2 dependencies
2022-09-08T22:40:01.151Z [DEBUG] (runner) all templates rendered
2022-09-08T22:40:01.151Z [INFO] (runner) stopping
2022-09-08T22:40:01.151Z [DEBUG] (runner) stopping watcher
2022-09-08T22:40:01.151Z [DEBUG] (watcher) stopping all views
2022-09-08T22:40:01.152Z [INFO] template.server: template server stopped
2022-09-08T22:40:01.152Z [INFO] (runner) received finish
2022-09-08T22:40:01.152Z [INFO] auth.handler: shutdown triggered, stopping lifetime watcher
2022-09-08T22:40:01.152Z [INFO] auth.handler: auth handler stopped
Вариант 2. Подключение переменных по одной в файл из конкретного секрета
Ниже пример задания двух переменных:
spec:
replicas: 1
selector:
matchLabels:
deployment: iamproxy-test2
template:
metadata:
creationTimestamp: null
labels:
deployment: iamproxy-test2
secman-injector: enabled
annotations:
sidecar.istio.io/inject: 'false'
traffic.sidecar.istio.io/excludeOutboundPorts: '443'
vault.hashicorp.com/role: role-ga-secman-iam-proxy
vault.hashicorp.com/agent-inject: 'true'
vault.hashicorp.com/agent-init-first: 'true'
vault.hashicorp.com/agent-pre-populate-only: 'true'
vault.hashicorp.com/secret-volume-path-rds-keystore: /certs
vault.hashicorp.com/agent-inject-template-file-rds-keystore: rds-keystore.p12
vault.hashicorp.com/agent-inject-secret-rds-keystore: "true"
vault.hashicorp.com/agent-inject-template-rds-keystore: |
{{- with secret "DEV/AUTH/SC/KV/OSE.tribe-sc-auth-dev-01.certs" -}}
{{ base64Decode (index .Data "rds-keystore.p12.base64") }}
{{- end }}
vault.hashicorp.com/secret-volume-path-server.key.pem: /certs
vault.hashicorp.com/agent-inject-template-file-server.key.pem: rds-keystore.p12
vault.hashicorp.com/agent-inject-secret-server.key.pem: "true"
vault.hashicorp.com/agent-inject-template-server.key.pem: |
{{- with secret "DEV/AUTH/SC/KV/OSE.tribe-sc-auth-dev-01.certs" -}}
{{ index .Data "server.key.pem" }}
{{- end }}
